IPTV OTT CATV Streaming Encoder to Hide Logo

FOB Reference Price:Get Latest Price
  • 1 - 49 Units
    US $1875.00
  • >=50 Units
    US $1699.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Jiexiang
Model Number:
JX-3000
Input:
8 HD Signals
Protocol:
real-time H.264 encoding, RTMP/UDP/RTP publishing
Video encoding:
MPEG4 AVC/H.264 Video encoding
Working:
wowza, Xtream Codes
Input HD Resolution:
1280*720P@50/60, 1080i@50/60.
Type:
1 MPTS output through 2 ASI output
IP Port:
RJ45 100/1000Mbps
OS:
Linux (Centos7.2)
Software:
Preview & Live Stream Broadcast
Name:
IPTV OTT CATV Streaming Encoder to Hide Logo
Supply Ability
Supply Ability:
30000 Unit/Units per Month
Packaging & Delivery
Packaging Details
32*42*45cm
1unit /carton
GW:11KG
NW:10KG
Color box, carton box, or gift box
Port
Chengdu
Lead Time :
Quantity(Units) 1 - 20 >20
Est. Time(day) 2 To be negotiated

IPTV OTT CATV Streaming Encoder to Hide Logo

Skype:   live:jiexiang02  to contact Jaylyn

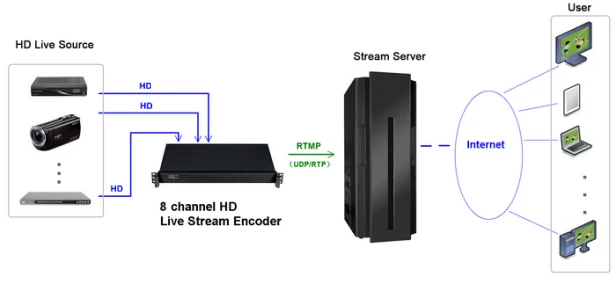

The encoder is mounted in 1U chassis which realized 8 channel HD capture, real-time H.264 encoding, RTMP/UDP/RTP publishing. With highly integrated hardware and software, the equipment is convenient for customers to push RTMP streams to Media stream server, such as wowza, Xtream Codes, etc.

This Encoder by compare with 2 STBs' HD signals, find & hide / remove the different video contents, such as the hashcode / video logo / watermark, etc.. *1
Note: *     a. Two STBs' output HD must be same channels (programs), and STB need to be same brand.
               b.Two channels' synchronized difference must be less than 10 frames, and the encoder can only output 4 streams when do compare for hide watermark.


Features

1. Can do 4 channels stream by remove / hide the STB Series Number, or do 8 channels Normal streams.
2. Output stream quality adjustable.
3. Can add logo for your stream
4. Supports RTMP/UDP/RTP protocols.
5. Software can be updated.
Main Specs

     Input Interface: 8-Channel HD

     HD input: 1280*720P@50/60, 1080i@50/60.

     Output Interface: RJ45 100/1000Mbps

     Display output: DVI / HD

     Output Protocols: RTMP/UDP/RTP

     OS: Linux (Centos7.2)

     Software: Preview & Live Stream Broadcast

     Power: AC110/220 50/60Hz

Th The encoding quality and the average output stream bitrate, also the stream bitrate can be adjusted.

HD Input

Suggested Quality

Resolution

Bitrate (Kbps)

1080i@50/60

Super

1920*1080

2300

Ultra

1440*1080

2000

720P@50/60

Excellent

1280*720

1200

Good

1120*630

1000

Fair

960*540

800

Poor

800*468

600

Mobile

480*270

400
