ASI IP Output Hashcode Remove Encoder

FOB Reference Price:Get Latest Price
  • 1 - 19 Sets
    US $1999.00
  • >=20 Sets
    US $1599.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Jiexiang
Model Number:
JX-800A
Product name:
ip streaming encoder
Intput:
8*HD
Output:
ASI&IP (ASI&RJ45 100/1000Mbps)
Protocol:
RTMP/UDP/RTP/HTTP
Video encoding:
H.264
Weight:
4kg
Dimension:
45x482x250MM
Application:
DVB&IPTV Headend Systems
MOQ:
1 set for ip streaming encoder
Warranty:
5 Years
Supply Ability
Supply Ability:
200 Unit/Units per Month for ip streaming encoder
Packaging & Delivery
Packaging Details
Carton Case
Port
Chengdu, Shenzhen, Shanghai, etc.
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(day) 5 To be negotiated

ASI IP Output Hashcode Remove Encoder

optic encoder

Technical Indicators

optic encoder



Outline



JX-800A HD to IP & ASI Converter with HashCode Remove functions - This 1U Rack-mounted video encoder is designed for HD Video hashcode / watermark / fingerprint / logo remove, hide or blurring on the fly. It with 8 channels HD input, by real-time H.264 encoding, output RTMP/HTTP/UDP/RTP TS and ASI for DVB.
With highly integrated hardware and software, the equipment is convenience for you send streaming to IPTV Media Streaming Server, such as wowza, Xtream Codes, or DVB modulators.

This Encoder by compare with 2 STBs' HD input signals, automatically detect & hide the different video contents, such as the hashcodes / video logo / watermark, etc.. (2 HD input, 1 stream output) *1
Note: *1   a. Two STBs' output HD must be same channels (programs), and STB need to be same brand, same settings.
        b. The encoder can only output 4 hashcode remove streams when do compare for hide watermark.



Specifications



Input Interface

8 x HD

HD format

1280*720P@50/60, 1080i@50/60

Encoding

H.264

Output

ASI&RJ45 100/1000Mbps

Display output

DVI / HD

Protocol

RTMP/UDP/RTP/HTTP

AC in

110/220V

AC rate

50/60Hz

Power consumption

Less than 70W

OS

CentOS

Size

1U chassis

Weight

4kg

Dimension

45x482x250MM



HD Input and the suggested stream quality as below



HD Input

Stream Quality

Stream Resolution

1080i@50/60

Super

1920*1080P@25/30

Ultra

1440*1080P@25/30

720P@50/60

Excellent

1280*720P@25/30   50/60

Good

1120*630P@25/30   50/60

Fair

960*540P@525/30   50/60

Poor

800*468P@25/30     50/60

Mobile

480*270P@25/30     50/60





Welcome to inquiry for more details!

Skype:Alina_jxdvb

Advantages

optic encoder

1. 8 Channels normal TS streaming or 4 Channels compared Streaming.
2. Output streaming video quality adjustable.
3. Can add logo for your stream.
4. Supports RTMP/UDP/RTP/HTTP protocols & ASI output for DVB modulators.
5. Software to be upgraded.

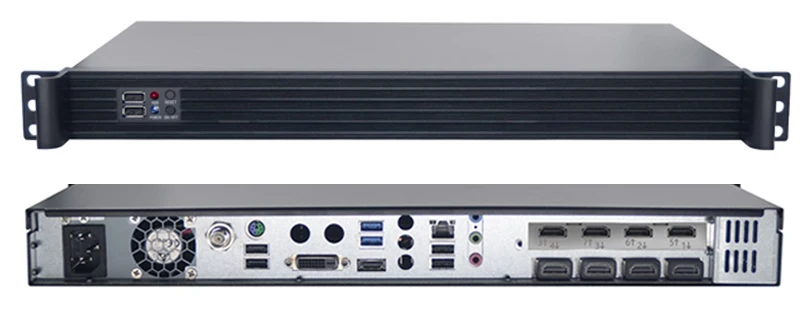

Product Show

optic encoder

HashCode-Remove Encoder



Software - Setup & Run

Can control each stream, also supports make stream to third party server, such as make stream to ustream.

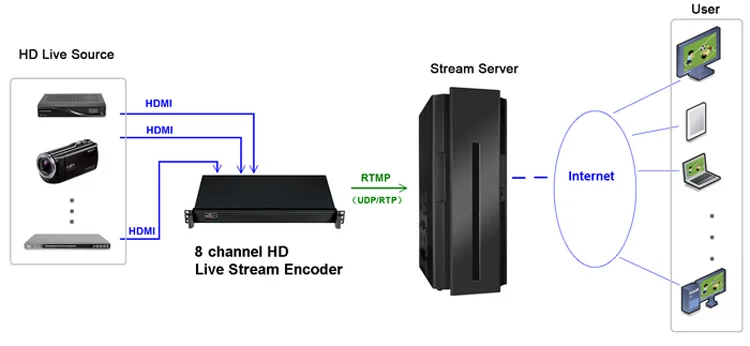

Diagram

Hash device dia
