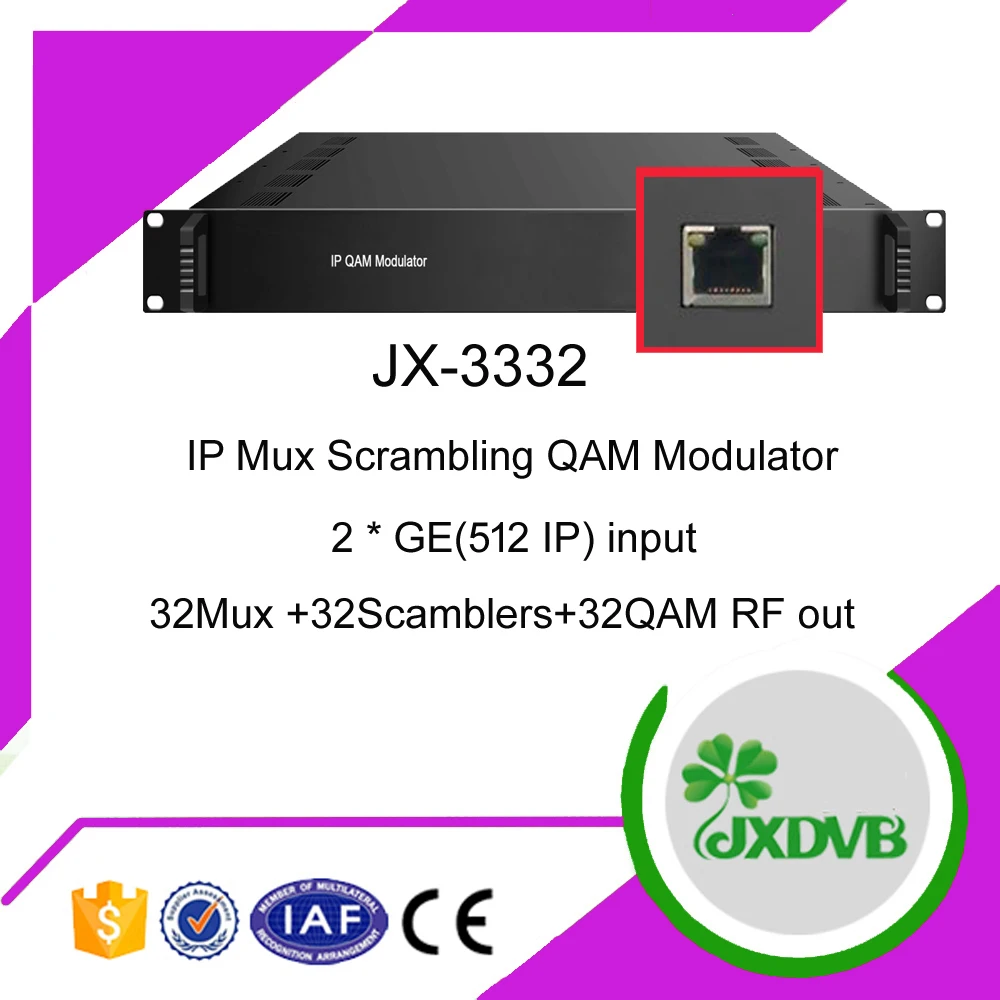

32 IP Mux Scrambling QAM Modulator IP QAM Modulator

FOB Reference Price:Get Latest Price
  • 1 - 49 Units
    US $1839.00
  • >=50 Units
    US $1149.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Jiexiang
Model Number:
JX-3332
Input1:
2 GE input, SFP interface
Protocol:
HTTP/RTSP//RTMP/UDP/ONVIF2.4
Manage:
Web-based Network management
Video encoding:
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP
Resolution:
1920x1080/1280x720/1280x1024/1280x960/704x576
IP Output:
32 multiplexed or scrambled TS over UDP/RTP/RTSP o
Input2:
Max 840Mbps for each GE input
Support:
32 non-adjacent QAM carriers
Standard:
DVB-C (EN 300 429) and ITU-T J.83 A/B
Name:
32 IP Mux Scrambling QAM Modulator IP QAM Modulator
Supply Ability
Supply Ability:
30000 Unit/Units per Month
Packaging & Delivery
Packaging Details
32*42*45cm
1unit /carton
GW:11KG
NW:10KG
Color box, carton box, or gift box
Port
Chengdu
Lead Time :
3-5working days

32 IP Mux Scrambling QAM Modulator IP QAM Modulator

Skype:   live:jiexiang02  to contact Jaylyn

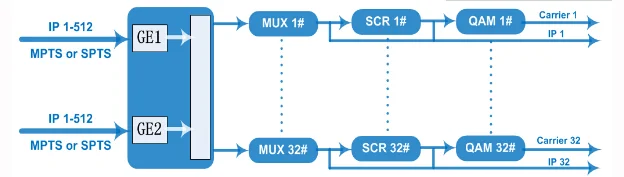

Input

Input

512×2 IP input, 2*100/1000M Ethernet Port(SFP interface optional)

Transport Protocol

TS over UDP/RTP, unicast and multicast, IGMP V2/V3

Transmission Rate

Max 840Mbps for each GE input

Mux

Input Channel

1024

Output Channel

32

Max PIDs

256 per channel

Functions

PID remapping(auto/manually optional)

PCR accurate adjusting

PSI/SI table automatically generating

Scrambling

Parameters

Max simulscrypt CA

4

Scramble Standard

ETR289, ETSI 101 197, ETSI 103 197

Connection

Local/remote connection

Modulation

Parameters

DVB-C Modulator Sectioon

J.83A

Constellation : 16/32/64/128/256QAM

Bandwidth :8M

J.83B

Constellation : 64QAM/ 256QAM

Bandwidth :6M

QAM Channel

32 non-adjacent carrier

Modulation Standard

EN300 429/ITU-T J.83A/B(DVB-C)

Symbol Rate

5.0~7.0Msps, 1ksps stepping

Constellation

16, 32, 64 , 128, 256QAM

FEC

RS (204, 188)

RF Output

Interface

1 F typed output port for 32 carriers, 75Ω

RF Range

50~960MHz, 1kHz stepping

Output Level

-20dBm~+10dBm(87~117dbµV), 0.1dB stepping

MER

≥ 40dB

TS output

32 IP output over UDP/RTP/RTSP, unicast/multicast, 2*100/1000M Ethernet Ports (SFP)

System

Network management software (NMS) supporting

General

Demission

420mm×440mm×44.5mm (WxLxH)

Temperature

0~45℃(operation), -20~80℃(storage)

Power Supply

AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
