H 264 Video Hardware HD MPEG4 Encoder

FOB Reference Price:Get Latest Price
  • 1 - 19 Units
    US $1986.00
  • >=20 Units
    US $1426.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Jiexiang
Model Number:
JX-3542L
Input:
8-24HD input, 1DVB-C tuner input
Protocol:
Support IP output over UDP and RTP
Video encoding:
H.264/AVC video encoding
Resolution:
1920x1080/1280x720/1280x1024/1280x960/704x576
Audio encoding:
MPEG1 Layer II audio encoding format, support audio gain adjustment
Support:
Support QR code, LOGO, OSD insertion
ASI Out:
ASI output(optional) as copy of MPTS
Output:
RJ45 Ethernet GE Port
Name:
H 264 Video Hardware HD MPEG4 Encoder
Supply Ability
Supply Ability:
30000 Unit/Units per Month
Packaging & Delivery
Packaging Details
32*42*45cm
1unit /carton
GW:11KG
NW:10KG
Color box, carton box, or gift box
Port
Chengdu
Lead Time :
3-5working days

H 264 Video Hardware HD MPEG4 Encoder

Skype:   live:jiexiang02  to contact Jaylyn








Input

8/12/16/20/24 hd inputs

Video

Resolution

input

1920×1080_60P, 1920×1080_60i,

1920×1080_50P, 1920×1080_50i,

1280×720_60P, 1280×720_50P,

720×576_50i,720×480_60i,

output

1920×1080_30P, 1920×1080_25P,

1280×720_30P, 1280×720_25P,

720×576_25P,720×480_30P,

Encoding

MPEG-4 AVC/H.264

Bit-rate

1~13Mbps each channel

Rate Control

CBR/VBR

GOP Structure

IP…P (P Frame adjustment, without B Frame )

Audio

Encoding

MPEG-1 Layer 2

Sampling rate

48KHz

Resolution

24-bit

Audio Gain

0-255 Adjustable

Bit-rate

64/128/192/224/256/320/384Kbps

Multiplexing

Maximum PID

Remapping

180 output pids per channel

Function

PID remapping ( automatically or manually)

Accurate PCR adjusting

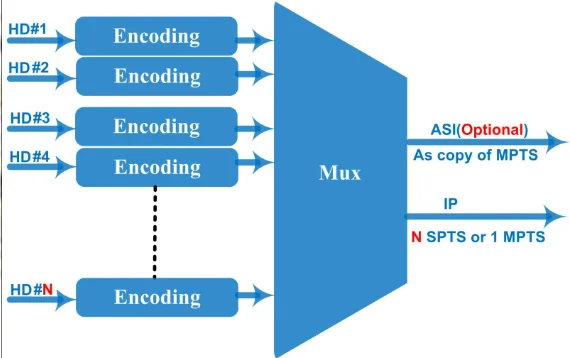

Stream output

ASI output(optional) as copy of MPTS

IP output thru Data1 (GE) or Data2(FE) over UDP and RTP protocol

(8/12 hd inputs with 8/12 SPTS and 1MPTS output

16/20/24 hd inputs with 16/20/24 SPTS or 1MPTS output )

System function

Network management(WEB)

Chinese and English language

Ethernet software upgrade

Miscellaneous

Dimension(W×L×H)

482mm×410mm×44mm

Environment

0~45℃(work);-20~80℃(Storage)

Power requirements

AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60
