8/16Channels HD to DVB-T DVB-C Encoder Modulator

FOB Reference Price:Get Latest Price
  • 1 - 99 Units
    US $1539.00
  • >=100 Units
    US $1109.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Jiexiang
Model Number:
JX-3548H
Input:
8 HD channels input & 1 ASI Input
Protocol:
HTTP/RTSP//RTMP/UDP/ONVIF2.4
Video encoding:
H.264/AVC video encoding
Resolution:
1920x1080/1280x720/1280x1024/1280x960/704x576
Output:
2 ASI +IP + 2 DVB-C or DVB-T RF Out
Application:
Digital TV Head-end System
Audio encoding:
MPEG1 Layer 2 ,AAC, AC3 Passthrough
Resolutions:
HD output resolution1080P@30
IP out:
IP (1000M) Output over UDP,RTP/RTSP
Name:
8/16Channels HD to DVB-T DVB-C Encoder Modulator
Supply Ability
Supply Ability:
30000 Unit/Units per Month
Packaging & Delivery
Packaging Details
32*42*45cm
1unit /carton
GW:11KG
NW:10KG
Color box, carton box, or gift box
Port
Chengdu
Lead Time :
Quantity(Units) 1 - 50 >50
Est. Time(day) 10 To be negotiated

8/16Channels HD to DVB-T DVB-C  Encoder Modulator

Skype:   live:jiexiang02  to contact Jaylyn

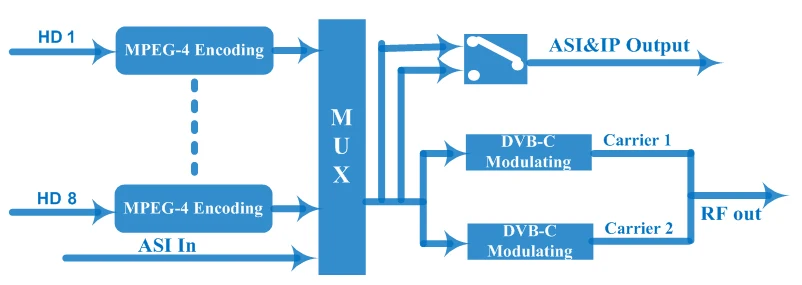

Input

8×HD inputs

1 ASI input, BNC interface

Video

Resolution

1920×1080_60P,1920×1080_50P

1920×1080_60i, 1920×1080_50i

1280×720_60P, 1280×720 _50P

720×576_50i, 720×480_60i

Encoding

MPEG-4 AVC/H.264

Bit-rate

0.8Mbps~19Mbps (each channel)

Rate Control

CBR/VBR

GOP Structure

IBBP

Advanced Pretreatment

De-interlacing, Noise Reduction, Sharpening

Audio

Encoding

MPEG-1 Layer 2 (HE-AAC V2, LC- AAC Option)

AC3 passthrough (for HD)

Sampling rate

48KHz

Bit-rate

64Kbps~384Kbps each channel

Audio Gain

0-400

Multiplexing

1 ASI input multiplexed with local 8 channels of TS

PID remapping (automatically or manually)

Accurate PCR adjusting

Generate PSI/SI table automatically

Modulation













DVB-C

Standard

J.83A, J.83B, J.83C

MER

≥42dB

RF frequency

30~960MHz, 1KHz step

RF output level

-30.0~ -10.0 dbm (77~97 dbµV), 0.1db step

Symbol rate

5.0 - 9.0 Msps

J.83A

Constellation

16/32/64/128/256QAM

bandwidth

8M

J.83B

Constellation

64QAM, 256QAM

bandwidth

6M

J.83C

Constellation

64QAM, 256QAM

Bandwidth

6M

RF out

2*RF DVB-C out

DVB-T

Standard

EN300744

FFT mode

2K, 8K

Bandwidth

6M, 7M, 8M

Constellation

QPSK, 16QAM, 64QAM

Guard Interval

1/4, 1/8, 1/16, 1/32

FEC

1/2, 2/3, 3/4, 5/6, 7/8

MER

≥42dB

RF frequency

30~960MHz, 1KHz step

RF output level

-30~ -10dbm (77~97 dbµV), 0.1db step

RF out

2*RF DVB-T out

Stream output

2*ASI to mirror one carrier output, BNC interface

8 SPTS over UDP,RTP/RTSP

1000Base-T Ethernet interface (unicast / multicast)

System function

LCD/keyboard operating, web NMS supporting

Ethernet software & hardware upgrade

Miscellaneous

Dimension (W× L× H)

482mm×455mm×44mm

Approx weight

4kg

Temperature

0~45℃(work),  -20~80℃(Storage)

Power

AC 100V-220V±10%, 50/60Hz

Consumption

25W
