IP HD H.264 VOD IPTV Server Gateway

FOB Reference Price:Get Latest Price
  • 5 - 24 Units
    US $1010.00
  • >=25 Units
    US $852.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Jiexiang
Model Number:
JX-3103
Input:
512 IP (SPTS/MPTS) input over UDP
ASI out:
2 independent groups of ASI output
Video encoding:
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP
Resolution:
1920x1080/1280x720/1280x1024/1280x960/704x576
IP out:
2 IP output over UDP
PSI:
PSI/SI rebuilding and editing
Output Bitrate:
bit -rate is 800Mbps
Support:
PID passthrough, re-mapping, multiplex up to 2048 PIDs per out channel
Protocol:
2 x IP (Unitcast/Multicast), UDP Protocol (up to 230Mbps)
Name:
IP HD H.264 VOD IPTV Server Gateway
Supply Ability
Supply Ability:
30000 Unit/Units per Month
Packaging & Delivery
Packaging Details
32*42*45cm
1unit /carton
GW:11KG
NW:10KG
Color box, carton box, or gift box
Port
Chengdu
Lead Time :
Quantity(Units) 1 - 50 >50
Est. Time(day) 2 To be negotiated

IP HD H.264 VOD IPTV Server Gateway

Skype:   live:jiexiang02  to contact Jaylyn







Input

 IP (RJ45,GE)

512 x MPTS/SPTS, Unitcast/Multicast, UDP Protocol

IGMP V2/V3

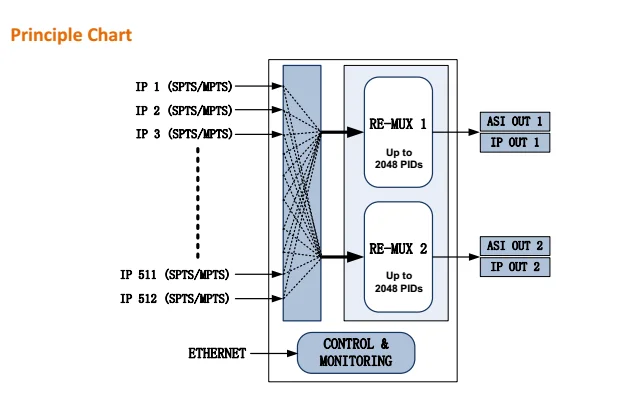

Re-multiplex

PID re-mapping (auto or manually available)



PCR accurate adjusting



Automatic generating PSI/SI table



PID passthrough



Support multiplex maximum 2048 PIDs each output channel

Output port

 ASI

2 x independent channels of ASI output (each channel has 2 ports) (up to 210Mbps)



 IP(RJ45,GE)

 2 x IP (Unitcast/Multicast), UDP Protocol (up to 230Mbps)

NMS port

Ethernet port

GE

General

Dimension

 482mmx410mmx44mm(WxLxH)



Weight

 2.0kg



Temperature

0~45℃(operation), -20~80℃(storage)



Power supply

 110VAC±10%,50/60Hz; 220VAC±10%,50/60Hz



Consumption

 <25w
