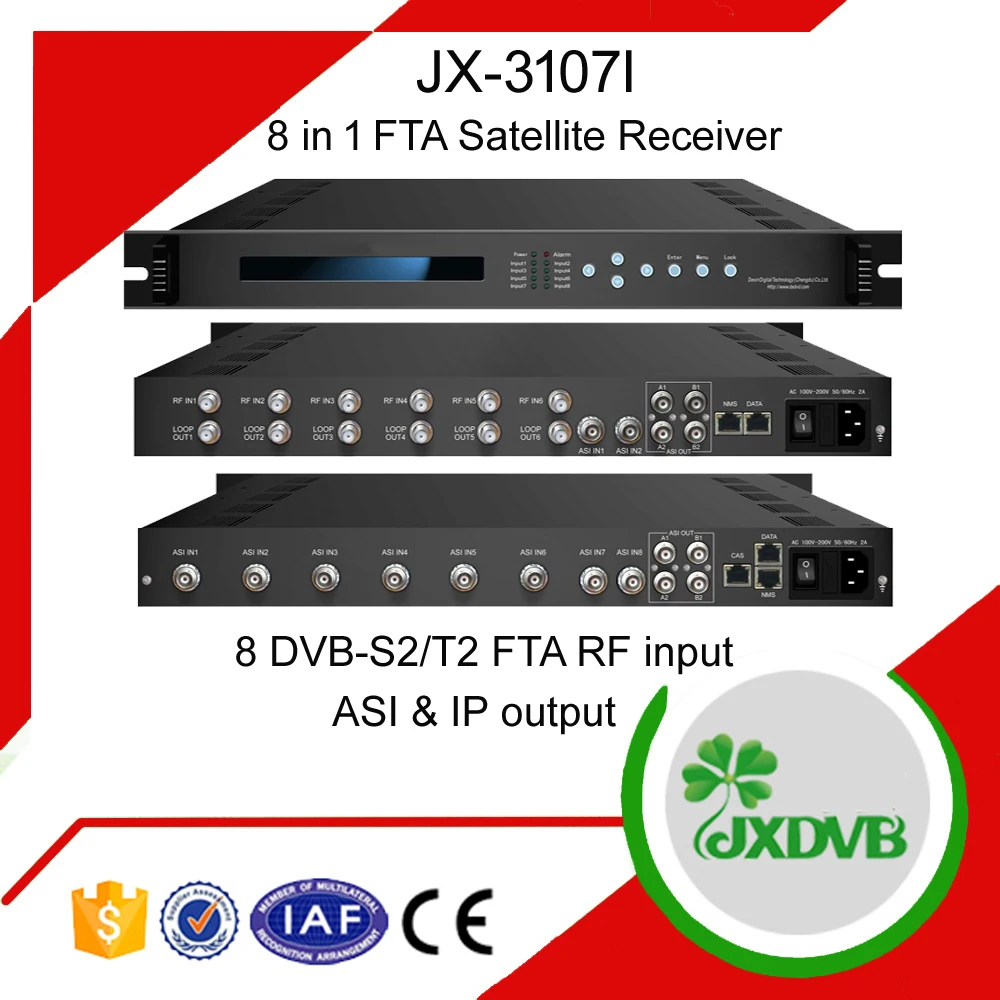

Free to Air DVB-S2 MPEG4 HD Satellite Receiver

FOB Reference Price:Get Latest Price
  • 1 - 19 Units
    US $996.00
  • >=20 Units
    US $869.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanxi, China (Mainland)
Brand Name:
OEM
Model Number:
JX-3107I
FTA(Free To Air):
Yes
Type:
Digital
High Definition:
Yes
Standard:
ISO13818 and EN300 468
Input1:
8 DVB-S2/T2/C FTA RF input + ASI input
Integration:
demodulating and multiplexing
Support:
One CAM can decrypt multiple programs from Tuners/ASI/IP
Output2:
IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output
Decoding:
Support BISS descrambling(Up to 120 Mbps)
Output:
ASI and IP output
PID:
PID filtering, re-mapping
PCR:
accurate PCR adjusting
Name:
Free to Air DVB-S2 MPEG4 HD Satellite Receiver
Supply Ability
Supply Ability:
30000 Unit/Units per Month
Packaging & Delivery
Packaging Details
32*42*45cm
1unit /carton
GW:11KG
NW:10KG
Color box, carton box, or gift box
Port
Chengdu
Lead Time :
3-5working days

Free to Air DVB-S2 MPEG4 HD Satellite Receiver

Skype:   live:jiexiang02  to contact Jaylyn

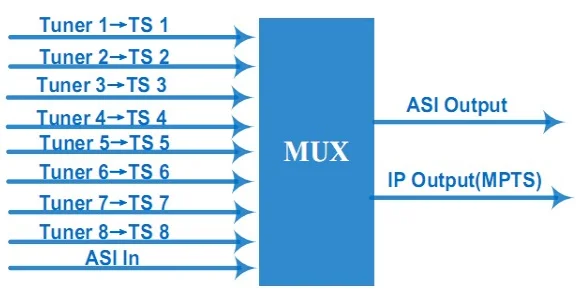

Input interface

8 DVB-C/S2/(T)/ATSC tuners+1 ASI---JX-3107I

8 DVB-C/S2/(T) tuners+1 ASI---JX-3108

Re-multiplex

PID re-mapping

PCR accurate adjusting

Automatic generating PSI/SI table

Input

Packet format

204/188 self-adaption

Output port

ASI

2 * ASI output(Max180Mbps)

IP

MPTS over UDP, RTP/RTPS out as mirror of ASI output (RJ45)

100 Mbps Ethernet–JX-3108 (Max 83Mbps)

1000 Mbps Ethernet–JX-3107I (Max 280Mbps)

PID

Output range

0x0000—0x1FFF

PID transparent

Any PID transparent and mapping achievable

output PID

128 (per input channel)

NMS port

Ethernet port

10/100M

General

Demission

482mm×300mm×44mm (WxLxH)

Temperature

0~45℃(operation), -20~80℃(storage)

Power supply

AC 110V±10%, 50/60Hz Or AC 220V±10%, 50/60Hz
