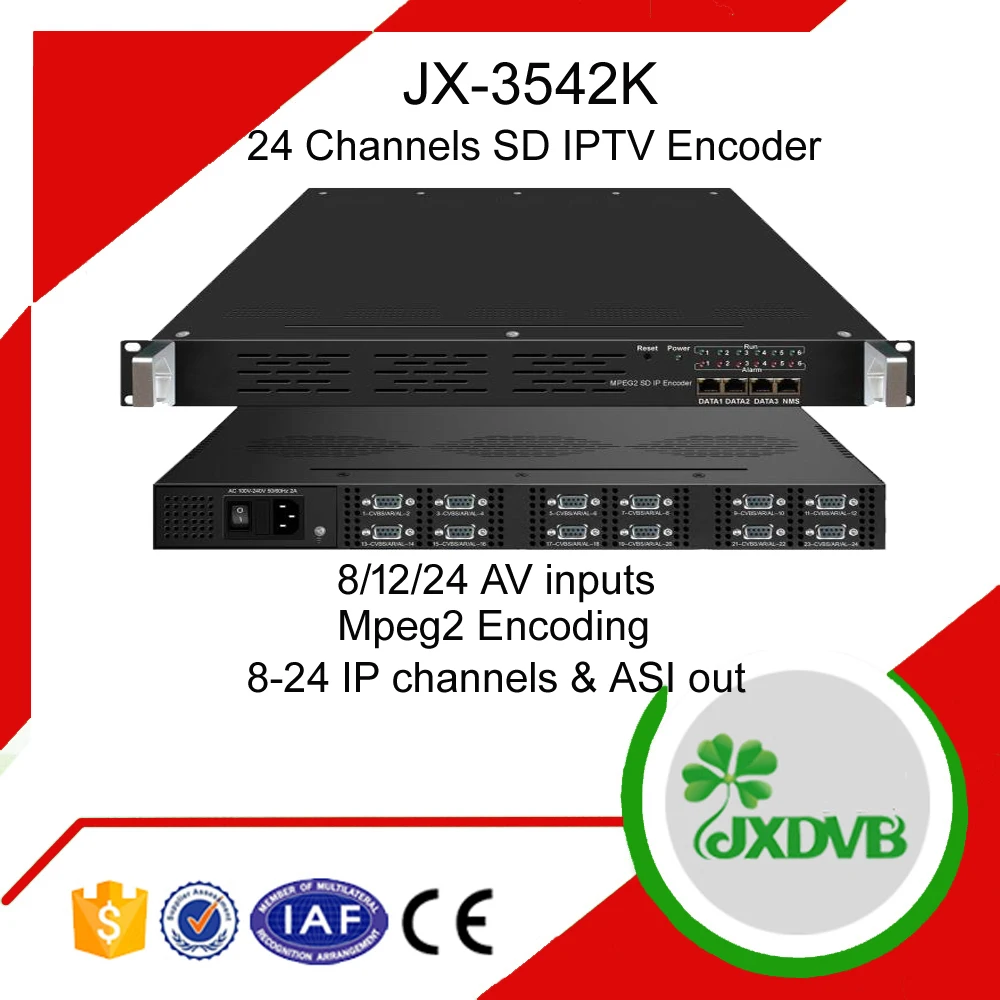

Digital Broadcast H.264 Multicast Unicast IPTV Encoder

FOB Reference Price:Get Latest Price
  • 1 - 19 Units
    US $1409.00
  • >=20 Units
    US $993.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Jiexiang
Model Number:
JX-3542K
Input:
24CVBS video inputs
Protocol:
Support IP output over UDP and RTP
Video encoding:
MPEG-2 Video encoding
Audio encoding:
MPEG1 Layer II audio encoding format, support audio gain adjustment
Support:
Support QR code, LOGO, OSD insertion
Type:
24AV video inputs with 24 SPTS or 1 MPTS output
Support1:
PID Remapping
Resolution:
720*480_60i, 544*480_60i, 352*480_60i
Application:
IPTV Headend Systems
Name:
Digital Broadcast H.264 Multicast Unicast IPTV Encoder
Supply Ability
Supply Ability:
30000 Unit/Units per Month
Packaging & Delivery
Packaging Details
32*42*45cm
1unit /carton
GW:11KG
NW:10KG
Color box, carton box, or gift box
Port
Chengdu
Lead Time :
Quantity(Units) 1 - 10 >10
Est. Time(day) 1 To be negotiated

Digital Broadcast H.264 Multicast Unicast IPTV Encoder

Skype:   live:jiexiang02  to contact Jaylyn






Input

8/12/24CVBS inputs , RCA interface

Video

Resolution

720×480_60i, 544×480_60i, 352×480_60i

352×240_60i, 320×240_60i,176×240_60i, 176×120_60i

720×576_50i, 704×576_50i, 640×576_50i, 352×288_50i, 320×288_50i, 176×288_50i, 176×144_50i

Encoding

MPEG-2

Bit-rate

0.5Mbps~8Mbps each channel

Rate Control

CBR/VBR

GOP Structure

GOP_0_B, GOP_1_B, GOP_2_B, GOP_3_B

Advanced Pretreatment

De-interlacing, noise reduction

Audio

Encoding

MPEG-1 Layer 2, AC3(2.0)

Sampling rate

48KHz

Resolution

24-bit

Bit-rate

64Kbps,128Kbps,192kbps,256kbps,320kbps,384kbps each channel

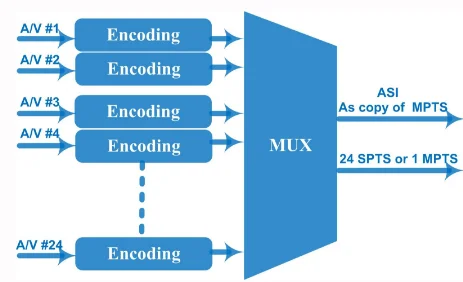

Multiplexing

Function

PID remapping (automatically or manually)

Accurate PCR adjusting

Generate PSI/ SI table automatically

Stream output

1 ASI as copy of MPTS

IP (MPTS/SPTS) output over UDP/RTP/RTSP

8/12 CVBS inputs with 8/12 SPTS and 1 MPTS output

24×CVBS inputs with 24 SPTS or 1 MPTS output

System function

Network management (WEB)

Chinese and English language

Ethernet software upgrade

Miscellaneous

Dimension(W×L×H)

482mm×410mm×44mm

Approx weight

8kg

Environment

0~45℃(work);-20~80℃(Storage)

Power requirements

AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

Power consumption

20W
