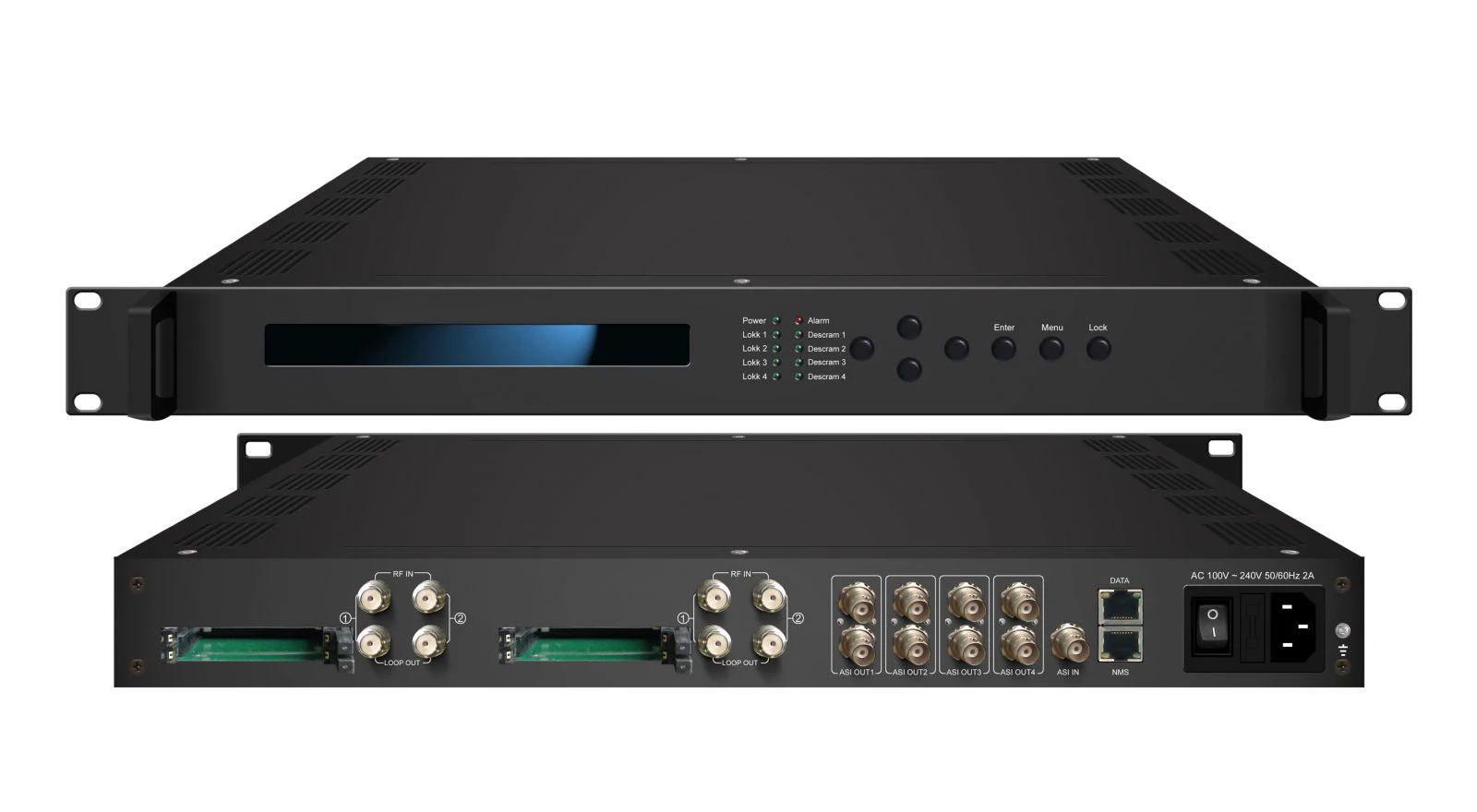

DVB-S2 HD Mpeg4 Digital Satellite TV Decoder for Paid Channels

  • 1 - 49 Units
    US $896.00
  • >=50 Units
    US $698.00
Plug Type:
AU Plug EU Plug Other UK Plug US PLUG
Color:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
Jiexiang
Model Number:
JX-358X
FTA(Free To Air):
Yes
Type:
Digital
High Definition:
Yes
Input:
4 Tuner inputs (DVB-C, T/T2, S/S2 Optional)
Protocol:
udp rtp multicast unicast
ASI input:
1ASI input for de-mux, BNC interface
Video encoding:
Mpeg-2/H.264/H.263/MPEG4 SP/MPEG4 ASP
DVB C Standard:
J.83A(DVB-C), J.83B, J.83C
Resolution:
1920x1080/1280x720/1280x1024/1280x960/704x576
DVB-T Standard:
DVB-T complywith ETSl EN300 744
DVB S2 input:
950-2150MHz
IP out:
48*SPTS over UDP, RTP/RTSP.
Name:
DVB-S2 HD Mpeg4 Digital Satellite TV Decoder for Paid Channels
Supply Ability
Supply Ability:
30000 Unit/Units per Month
Packaging & Delivery
Packaging Details
32*42*45cm
1unit /carton
GW:11KG
NW:10KG
Color box, carton box, or gift box
Port
Chengdu
Lead Time :
Quantity(Units) 1 - 10 >10
Est. Time(day) 1 To be negotiated
Video Description

DVB-S2 HD Mpeg4 Digital Satellite TV Decoder for Paid Channels

Skype:   live:jiexiang02  to contact Jaylyn

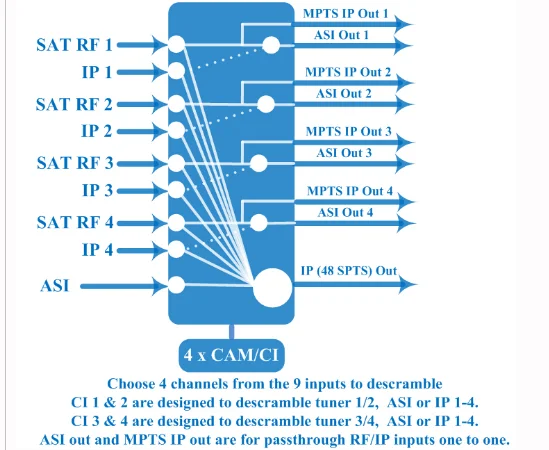

Input

4x RF (DVB-C, T/T2, S/S2 optional), F type

1×ASI input for de-mux, BNC interface

4xIP input for de-mux (UDP)

Tuner Section

DVB-C

Standard

J.83A(DVB-C), J.83B, J.83C

Input Frequency

47 MHz~860 MHz

Constellation

16/32/64/128/256 QAM

DVB-T/T2

Input Frequency

44-1002 MHz

Bandwidth

6M, 7M, 8M

DVB-S

Input Frequency

950-2150MHz

Symbol rate

1-45Mbauds

Signal Strength

- 65- -25dBm

Constellation

1/2, 2/3, 3/4, 5/6, 7/8 QPSK

DVB-S2

Input Frequency

950-2150MHz

Symbol rate

QPSK/8PSK1~45Mbauds

Code rate

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Constellation

QPSK, 8PSK

Output

IP

48*SPTS over UDP, RTP/RTSP.

1000M Base-T Ethernet interface (unicast/multicast)

4*MPTS over UDP, RTP/RTSP.

1000M Base-T Ethernet interface, for RF in passthrough (one-to-one)

ASI

4 groups BNC interface, for RF or IP in passthrough (one-to-one)



System

Local interface

LCD + control buttons

Remote management

Web NMS Management

Language

English



General

Power supply

AC 100V~240V

Dimensions

482*400*44.5mm

Weight

3 kgs

Operation temperature

0~45℃
