DVB-S2 Satellite receiver HD /IPTV Satellite Receiver

FOB Reference Price:Get Latest Price
US $300-900 / Sets | 1 Set/Sets IPTV Satelite Receiver (Min. Order)
Color:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
JIEXIANG
Model Number:
JX-878XH
FTA(Free To Air):
Yes
Type:
Digital
High Definition:
Yes
input:
2 tuner/IP/ASI
Output:
ASI/IP/SDI/CVBS/YPbPr
support:
2 CAM and 2 Smart card
Format:
DVB-C/DVB-S/S2/DVB-T/T2
BISS descrambling (Up to 120Mbps):
yes
CC(Closed Caption):
support
Application:
DVB headend system and iptv system
management:
Web NMS
warranty:
one year
IP Output:
UDP/RTSP
Supply Ability
Supply Ability:
2000 Set/Sets per Month IPTV Satelite Receiver
Packaging & Delivery
Packaging Details
Dimensions:482*300*44.5mm
Weight:3 kgs
Package: Foam and Carton Box
IPTV Satelite Receiver
Port
Shenzhen/ Shanghai
Lead Time :
in stock

DVB-S2 Satellite receiver HD /IPTV Satelite Receiver



                                       You are welcome to add my skype:Alina_jxdvb for direcr discuss

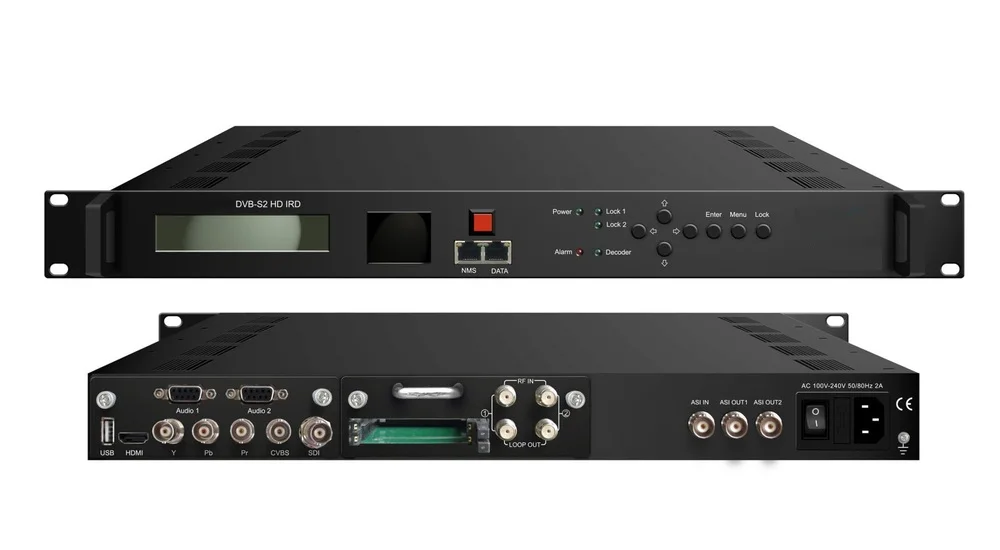

  IRD With CI.jpg

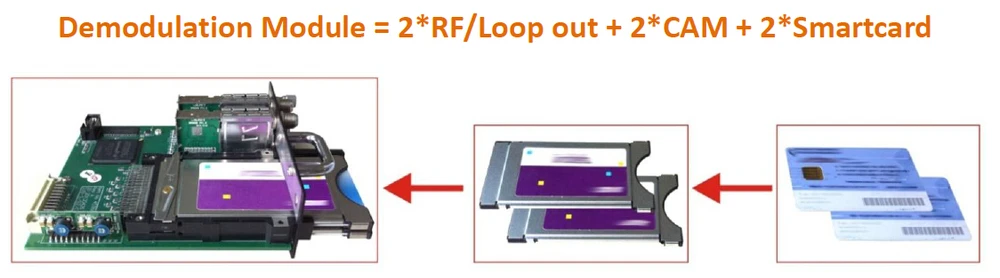

hd-ird cam.jpg

Introduction



This HD IRD is our all-in-one device which integrates demodulation, de-scrambler, re-mux and decoding in one case to convert RF signals into audio/video (CVBS/YPbPr/HD/SDI) output.

It is a 1-U case which supports 2 tuner inputs to receive signal from satellite, cable or terrestrial devices. The two CAMs/CIs accompanied and BISS modules can descramble the programs input from encrypted RF, ASI and IP.

Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed.

To meet customers’ various requirements, this item is also equipped with ASI and IP input for re-mux, and output with 2 ASI ports and IP port.







Key Features







*  Demodulation + descrambler +re-mux+decoder modules in one box



*  2 DVB-C/T/S/S2 Tuner inputs



*  1 ASI & 1 IP (UDP) input for re-mux



*  One CAM can decrypt multiple programs from Tuners/ASI/IP



*  Support BISS descrambling (Up to 120Mbps)



*  One channel video output with various interface option (MPEG2/H.264)



*  Dual stereo audio output, or one DD Digital Plus (5.1) channel output



*  Support DD Digital Plus Decoding and passthrough (for HD/SDI out)



*  IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output; ASI out



*  Support CC, Subtitle and Teletext



*  Support maximum 128 PID mapping per input



*  Pluggable and changeable demodulator and decoder modules



*  LCD display, Remote control and Firmware, web NMS management



*  Update via USB or web

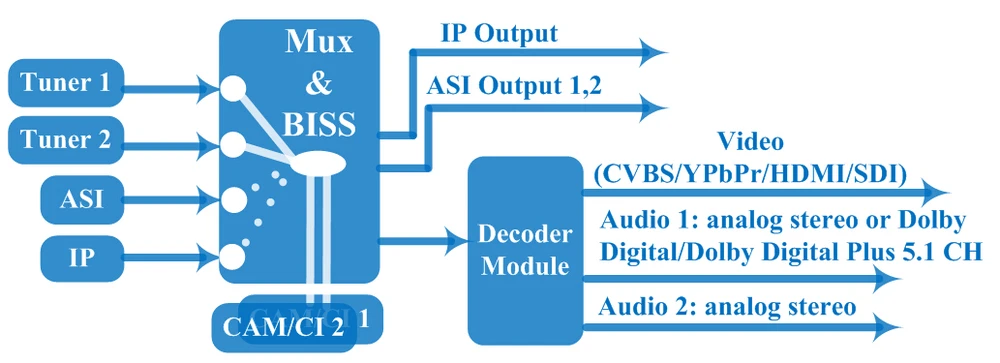

Principle Chart










Technical Specifications







Input

2 x DVB-S/S2RF, F type

1×ASI input for re-mux, BNC interface

1xIP input for re-mux (UDP)

Demodulating Section

DVB-C

Standard

J.83A(DVB-C), J.83B, J.83C

Input Frequency

30 MHz~1000 MHz

Constellation

16/32/64/128/256 QAM

DVB-T/T2

Input Frequency

30MHz ~999.999 MHz

Bandwidth

6/7/8 M bandwidth

DVB-S

Input Frequency

950-2150MHz

Symbol rate

2-45Msps

Signal Strength

- 65- -25dBm

Constellation

1/2, 2/3, 3/4, 5/6, 7/8 QPSK

DVB-S2

Input Frequency

950-2150MHz

Symbol rate

QPSK 1~45Mbauds;

8PSK 2~30Mbauds

Code rate

1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

Constellation

QPSK, 8PSK

Descrambling

CAM/CI Quantity

2

BISS Mode

Mode 1, Mode E;

up to 120Mbps





Output

IP Output

1*MPTS & 8*SPTS over UDP, RTP/RTSP.

100Base-T Ethernet interface (unicast / multicast)

2×ASI

BNC interface, mirrored out

Decode

Output

Video Interface: 1xCVBS/YPbPr/HD/SDI

Resolution: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

Video Decode: MPEG-2; H.264

Audio Interface: 2 x Stereo/4xmono, HD, SDI

Audio Decode: MPEG 1 Layer II, LC-AAC, HE-AAC, DD Plus

Audio Output Mode: Left, Right, Stereo, 5.1 CH

System

Local interface

LCD + control buttons

Remote management

Web-server Management

Language

English

Upgrade

USB, web management

General

Power supply

AC 100V~240V

Dimensions

482*300*44.5mm

Weight

3 kgs

Operation temperature

0~45

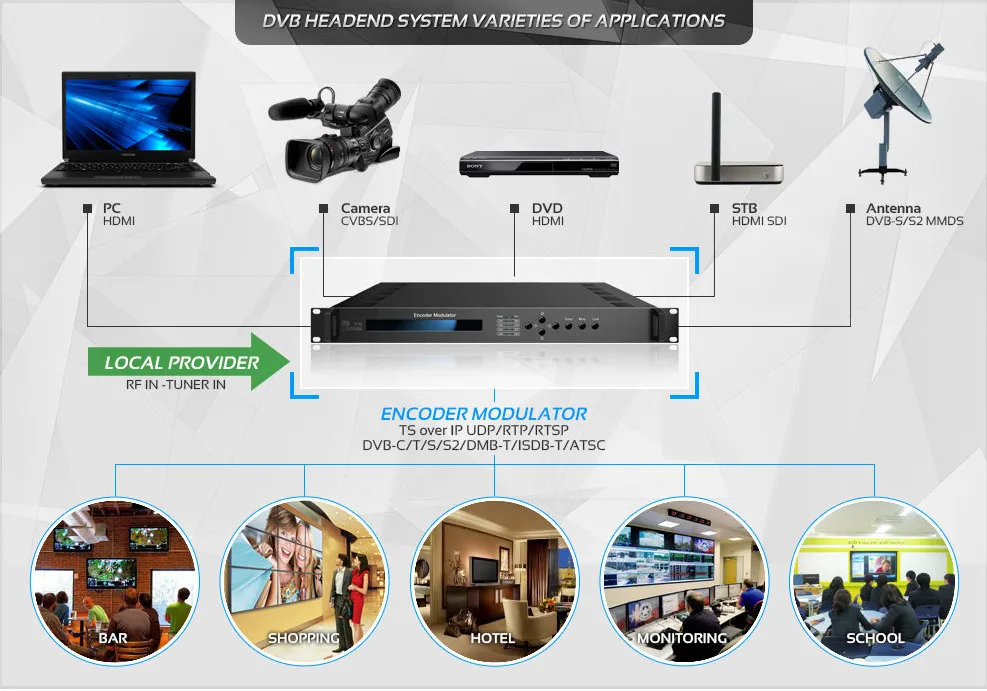

Headend system.jpg

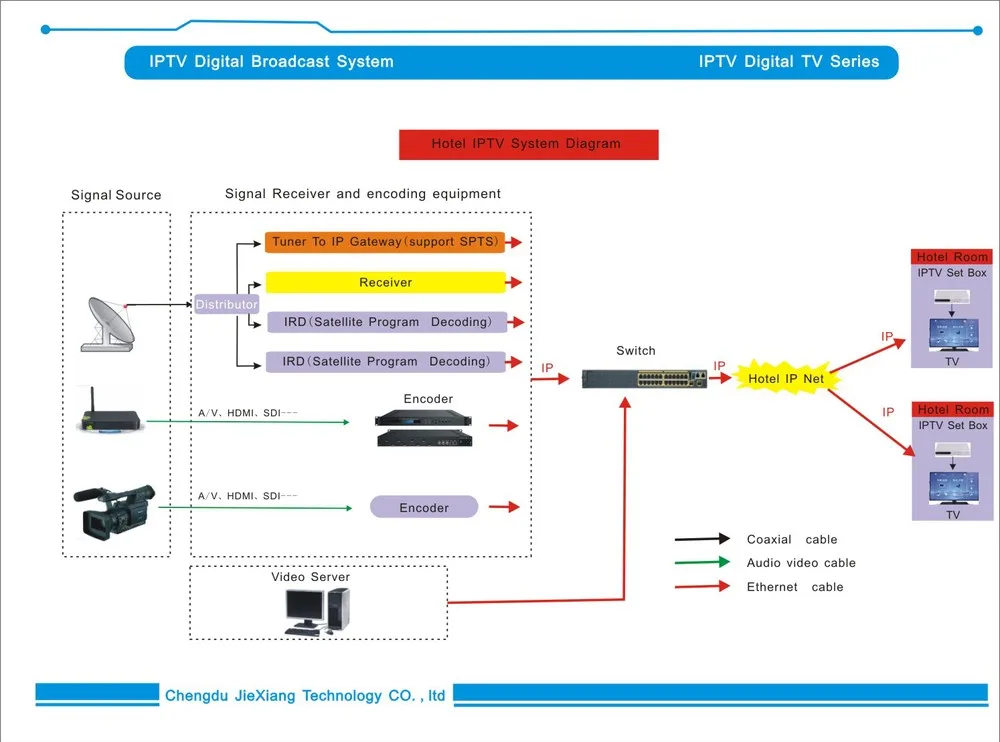

 IPTV-e.jpgDVB System.jpg

Manufacture process.jpg

We are alibaba verified supplier, all our products enjoy 1 year warantty. Our technical support are 24 online, whenever you meet problem we can reply and solve within one hour.
