High quality professional ISDB-T mini encoder modulator

FOB Reference Price:Get Latest Price
US $100-600 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Sichuan, China (Mainland)
Brand Name:
jiexiang
Model Number:
JX-8744C
input:
HD
RF Frequency:
30~960MHz
encoding format:
mpeg-4 avc/h.264
support:
DVB-C/DVB-T/ISDB-T/ATSC
warranty:
one year
Package:
Carton box
bit-rate:
0.5~19.5Mbps
Supply Ability
Supply Ability:
3000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Size: 153*110*52mm
Package: Carton Box
weight: 2KG
Port
Shenzhen/Shanghai
Lead Time :
3-5 Days

      High quality professional ISDB-T mini encoder modulator



               mini .jpg



Outline:



This consumer electronics  allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.It is an all-in-one device integrating MPEG-4 encoding and DVB-T/DVB-C/DTMB/ATSC-T/ISDB-T modulating to convert audio/video signals to DVB-T/DVB-C/DTMB/ATSC-T/ISDB-T RF out in the frequency range of 30~960MHz.The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. its output signal is to be received by a DVB-T/DVB-C/DTMB/ATSC-T/ISDB-T standard TV, DVB-T/DVB-C/DTMB/ATSC-T/ISDB-T STB etc.





Technical Specifications:




Encoding Section:


Full HD:


Video:Encoding    MPEG-4 AVC/H.264
           Interface  Full HD*1
           Resolution:1920*1080_60P,1920*1080_50P;1920*1080_60i, 1920*1080_50i;1280*720_60p, 1280*720_50P
           Bit rate  0.500~19.500 Mbps
Audio: Encoding  MPEG1 Layer II, (MPEG2-AAC, MPEG4-AAC available )
Sample rate  48KHz
Bit rate  64, 96,128, 192, 256, 320, 384kbps


YPbPr/CVBS/S-Video (with an adapter to VGA)




Video:Encoding    MPEG-4 AVC/H.264
         Interface  CVBS *1, YPbPr*1, S-Video*1


    CVBS & S-Video:


720x576_50i (PAL); 720x480_60i


YPbPr:
1920*1080_60i, 1920*1080_50i;
1280*720_60p, 1280*720_50P
Bit rate  0.500~19.500 Mbps


Audio:Encoding  MPEG1 Layer II, (MPEG2-AAC, MPEG4-AAC available )
           Interface  1*Stereo /mono
          Sample rate  48KHz
         Bit rate  64, 96,128, 192, 256, 320, 384kbps


Modulator Section:




DVB-T:Standard    DVB-T COFDM
             Bandwidth  6M, 7M, 8M
             Constellation  QPSK, 16QAM, 64QAM,
             Code rate  1/2, 2/3, 3/4, 5/6, 7/8.
            Guard Interval  1/32, 1/16, 1/8, 1/4
            Transmission Mode:  2K, 8K
            MER  ≥42dB
            RF frequency    30~960MHz, 1KHz step
            RF output level  -16~ -36dBm (71~91dbµV), 0.1db step




DTMB:Standard    GB20600-2006
            FFT  1,3780,1+pilot
           MER  ≥42dB
           FEC  0.4,0.6,0.8
           Frame Mode    420,595,945,420var ,945var
          Interleaving    240,720
          RF frequency    30~960MHz, 1KHz step
          RF output level  -16~ -36 dBm (71~91dbµV), 0.1db step
          Constellation  4QAM-NR,4QAM,16QAM, 32QAM,64QAM




DVB-C:Standard    J.83A (DVB-C), J.83B

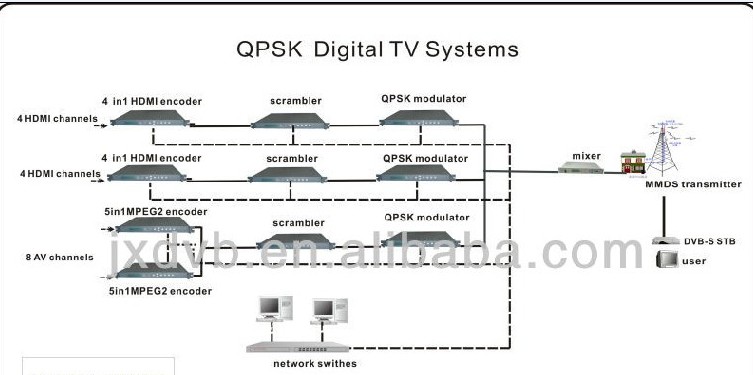

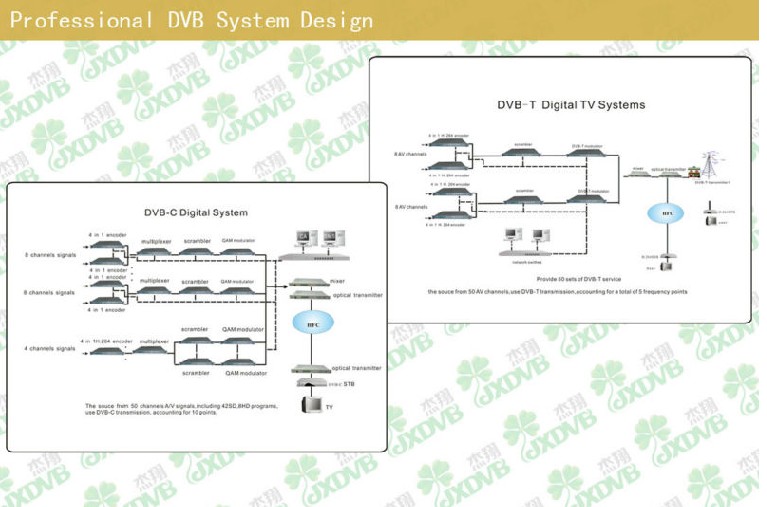

QPSK Digital TV System.jpgHeadend Digital System.jpgSystem Design.jpghome entertainment.jpg






FAQ
